How to Fix External Hard Drive Not Showing in Windows 11

External Hard Drive Not Showing in Windows 11; An external hard drive is the lifeblood of data backup, media storage, and file transfers. Whether you are backing up years of family photos or accessing critical work files, plugging your drive into your computer and seeing absolutely nothing happen triggers an immediate wave of anxiety. When you encounter an external hard drive not showing in Windows 11, it is natural to fear that your data is gone forever.

However, unless you have recently dropped the drive or heard an ominous clicking sound coming from inside its casing, the issue is highly likely a software communication breakdown. Windows 11 introduces incredibly strict security protocols, complex drive partition handling, and aggressive USB power-saving matrices. A simple drive letter conflict, a corrupted file system, or a stalled USB host controller can make your storage drive completely invisible to File Explorer.

In this comprehensive, deep-dive troubleshooting manual, we will systematically walk through the exact steps required to locate your missing external drive, assign it proper paths, and restore full access to your data.

1. The Hardware Reality Check: Inspecting Power and Connections

Before modifying system parameters, we must ensure that the drive is physically receiving power and data streams. High-capacity external drives are incredibly sensitive to voltage fluctuations.

Listen and Feel: Pick up the external hard drive. Do you feel a faint vibration indicating that the mechanical platters inside are spinning? Is there a status LED light glowing or blinking? If there is zero vibration and no light, the drive is not receiving power.
The Power Delivery Factor: Many 3.5-inch desktop external drives require a dedicated power cable plugged into a wall outlet. Ensure this is connected. For smaller 2.5-inch portable drives that pull power strictly via USB, try plugging the cable directly into a rear port on your desktop motherboard rather than a front-panel case port or an unpowered USB hub. Front ports often fail to deliver the full amperage required to spin up a hard drive.
Swap the Cable: USB cables degrade internally over time due to bending. Swap out the cable for a known-working replacement to rule out data-line degradation.

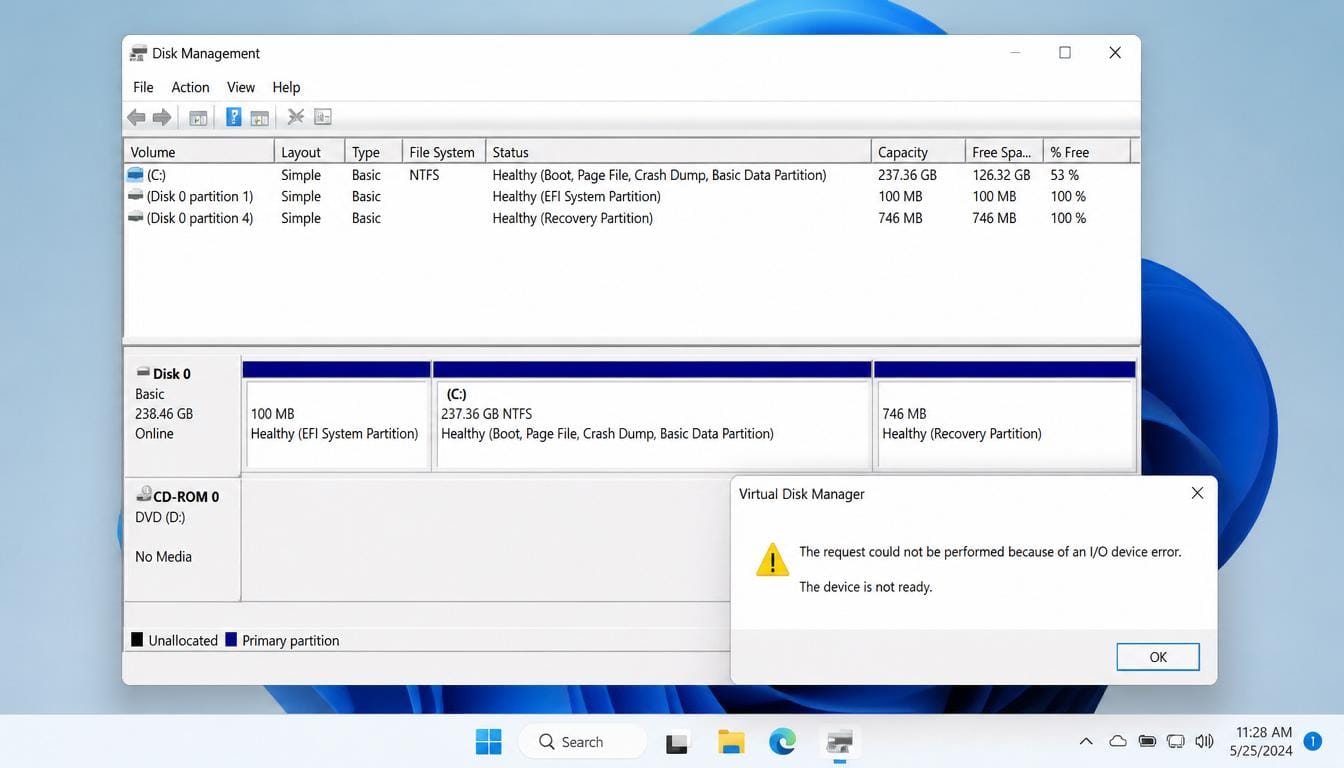

2. Locating the Drive via Windows 11 Disk Management

If the drive is spinning but missing from “This PC,” the operating system has likely acknowledged the hardware but has failed to allocate a path for it. File Explorer will only show drives that have a healthy volume partition and an assigned drive letter. We must force Windows to map it using Disk Management.

Right-click the Start menu button on your taskbar and select Disk Management from the pop-up list.
Scroll down through the bottom half of the window to see a visual map of all connected storage disks (Disk 0, Disk 1, etc.). Look for a disk that matches the size of your external hard drive.
Depending on what you see next to your drive’s label, apply the appropriate fix below:

Scenario A: The Drive says “Unallocated” or “Not Initialized”

This means the drive has no partition table or file system.

Warning: If this is a brand-new drive out of the box, right-click the disk area, select Initialize Disk, choose GPT, right-click the unallocated space, and select New Simple Volume to format it.
Critical Data Warning: If this is an old drive containing important data and it suddenly shows as unallocated, do not format it. This indicates your partition table has corrupted. Jump straight to the driver and command repairs in the subsequent steps.

Scenario B: The Drive has a healthy bar but no letter

If the drive shows a healthy volume bar (usually blue) but lacks a letter designation (like D:, E:, or F:):

Right-click the healthy partition area of the external drive.
Select Change Drive Letter and Paths.
Click the Add button.
Choose a drive letter from the drop-down menu (e.g., M or X) and click OK.
Open File Explorer immediately; your drive should populate instantly with your files intact.

3. Updating or Reinstalling Device Drivers

If your drive fails to appear inside Disk Management altogether, Windows 11 is failing to recognize the USB-to-SATA bridge chip housed inside the external drive’s enclosure.

Right-click the Start button and select Device Manager.
Expand the Disk drives category. Look to see if your external hard drive’s brand name (e.g., Seagate, Western Digital, Samsung) is listed.
Next, expand the Universal Serial Bus controllers section at the bottom. Look for any entry displaying a yellow warning triangle, or an item labeled USB Mass Storage Device.
Right-click your external hard drive (or the yellow-flagged USB device) and select Uninstall device.
Confirm the uninstallation. Once it vanishes, unplug the USB cable of your external hard drive from your PC.
Wait 10 seconds, then plug the drive back into a different USB slot. Windows 11 will force an immediate, clean re-scan of the motherboard data lines and map a fresh, stable driver to the device.

4. Overriding USB Selective Suspend and Power Management

As part of its aggressive energy-conservation policies, Windows 11 can unilaterally decide to shut off electrical power to a USB slot if it believes the device connected to it has gone idle. This frequently forces external hard drives to disconnect abruptly in the middle of operation.

Open your Start menu, type Edit Power Plan, and launch the Control Panel tool.
Click on Change advanced power settings.
In the small menu tree that opens, locate and expand USB settings > USB selective suspend setting.
Switch the configuration fields from “Enabled” to Disabled for both running states.
Next, go back to Device Manager, expand Universal Serial Bus controllers, right-click on USB Root Hub, and select Properties.
Navigate to the Power Management tab and uncheck the box that reads: “Allow the computer to turn off this device to save power.” Click OK.

5. Running CHKDSK to Repair File System Corruption

If your drive shows up in Disk Management but displays a file system labeled as RAW, it means Windows can see the hardware but the index file system (NTFS or exFAT) has suffered an abrupt data corruption—often caused by pulling the USB cable out without using the “Safely Remove Hardware” eject utility.

We can run an advanced terminal command to patch this data index without wiping your files:

Type CMD into your Windows search box, right-click Command Prompt, and select Run as Administrator.
Check Disk Management to see what disk volume letter or number your drive is attempting to use. Let’s assume your drive is occupying the letter E.
Type the following file repair command into the terminal and hit Enter: chkdsk E: /f /r
Note: The /f flag tells Windows to fix errors on the disk, while /r locates bad sectors and recovers readable information. This scan can take several hours depending on the capacity of your external drive. Do not close the window or unplug the drive until it reaches 100%.

Conclusion

Fixing an external hard drive not showing in Windows 11 is heavily anchored in understanding how the operating system maps volume drives and manages port voltages. By stepping through physical port allocation, assigning explicit drive letter pathways within Disk Management, and stopping aggressive USB suspension profiles, you can resolve the overwhelming majority of visibility glitches. If your drive remains completely silent, fails to vibrate, or exhibits a rhythmic, clicking physical noise, the internal magnetic write-heads have encountered mechanical failure, and you will need to consult a clean-room data recovery specialist.
